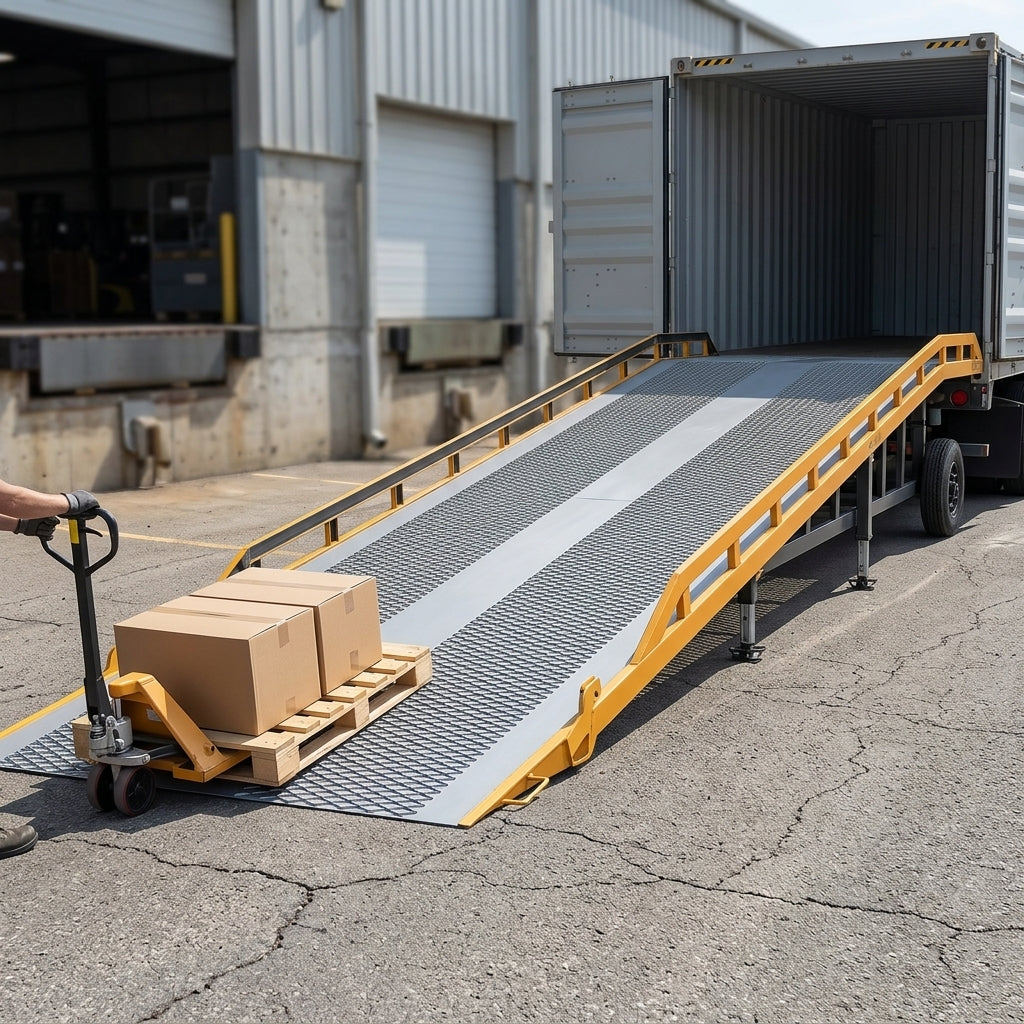

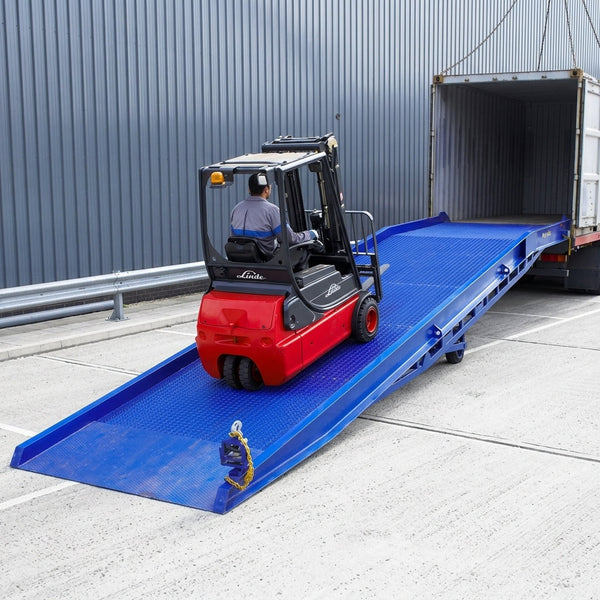

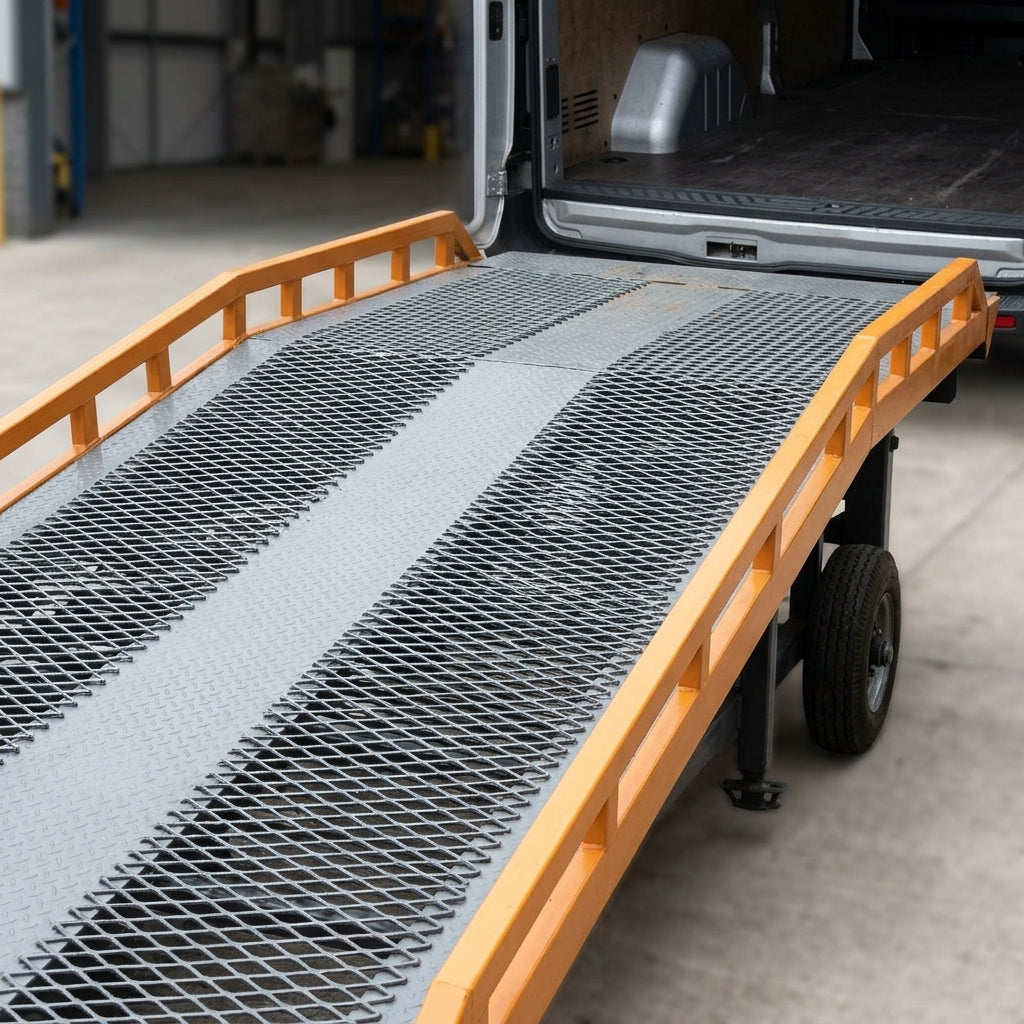

Steel Mobile Yard Ramp for Shipping Containers – Height Adjustable 1200mm to 1600mm, Up to 10000kg
£23,880.00
Not sure it suits your forklift?
Send us your dock height and forklift weight — we'll confirm the right ramp before you order.
Overview
A heavy-duty mobile yard ramp for loading and unloading shipping containers safely and efficiently – a popular choice for warehouses, distribution centres and industrial sites. With load capacities of up to 10,000kg, it suits forklifts, pallet trucks, plant machinery, cars, vans and other vehicles. Built from durable steel for reliable performance in demanding industrial environments, it can be moved into position quickly and adjusted in height for seamless loading.
Specifications
| Capacity | 6000kg – 10300mm L x 2100mm W |
|---|---|
| Handrail Options | No Handrails |
| Internal Width (mm) | 1800 |
| Length (mm) | 10300 (6000 & 7000kg capacity ramp) / 11300 (10,000kg capacity ramp) |
| Platform Length (mm) | 3000 |
| Total Width (mm) | 2100 |
| Capacity (kg) | 6000 - 10000 |
| Inclined Section (mm) | 7000 (6000 + 1000 hinged section) (6,000 & 7000kg capacity ramp) / 8000 (7000 + 1000 hinged section) (10,000kg capacity ramp) |
| Max Load Height (mm) | 1600 |
| Min. Load Height (mm) | 1200 |
| One Year Warranty | Yes |
| Leave Outside | Yes |
| Colour Options | White |
Features
- Height adjustable from 1200mm to 1600mm using the hydraulic assist system and side-mounted handle, so the ramp lines up with the container.
- Pneumatic tyres let you manoeuvre the ramp into position easily with a forklift.
- Hinged foot folds down for smooth entry onto the ramp for vehicles and machinery.
- Hinged, adjustable rest-on connection plate flips onto the container for a smooth transition from the ramp into the container.
- High-traction diamond surface gives optimum grip in all weather conditions.
- Smooth gradient lets vehicles and machinery, including forklifts, climb the ramp safely and easily.
- 1800mm (1.8m) usable width, ideal for forklifts, plant machinery and cars.
Design & Safety
- Integrated safety chains anchor the ramp securely to the container during use, minimising movement.
- Support stands add stability during loading and unloading.
- High-visibility yellow safety edges come as standard, alerting drivers to the ramp perimeter and helping to stop vehicles driving off the sides.
- Available with or without pedestrian handrails for extra safety where people need to walk up the ramp; when selected, handrails are supplied as a pair.
Build Quality
- Heavy-duty steel construction, designed for use in all weathers and can be left outside.
- CE marked for compliance and safety assurance.
- One-year warranty.
Sizes
- 6000kg and 7000kg capacity ramps: 10300mm overall length, with a 7000mm inclined section (6000mm + 1000mm hinged section).
- 10,000kg capacity ramp: 11300mm overall length, with an 8000mm inclined section (7000mm + 1000mm hinged section).
- All versions: 3000mm platform length, 1800mm internal width and 2100mm total width.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
