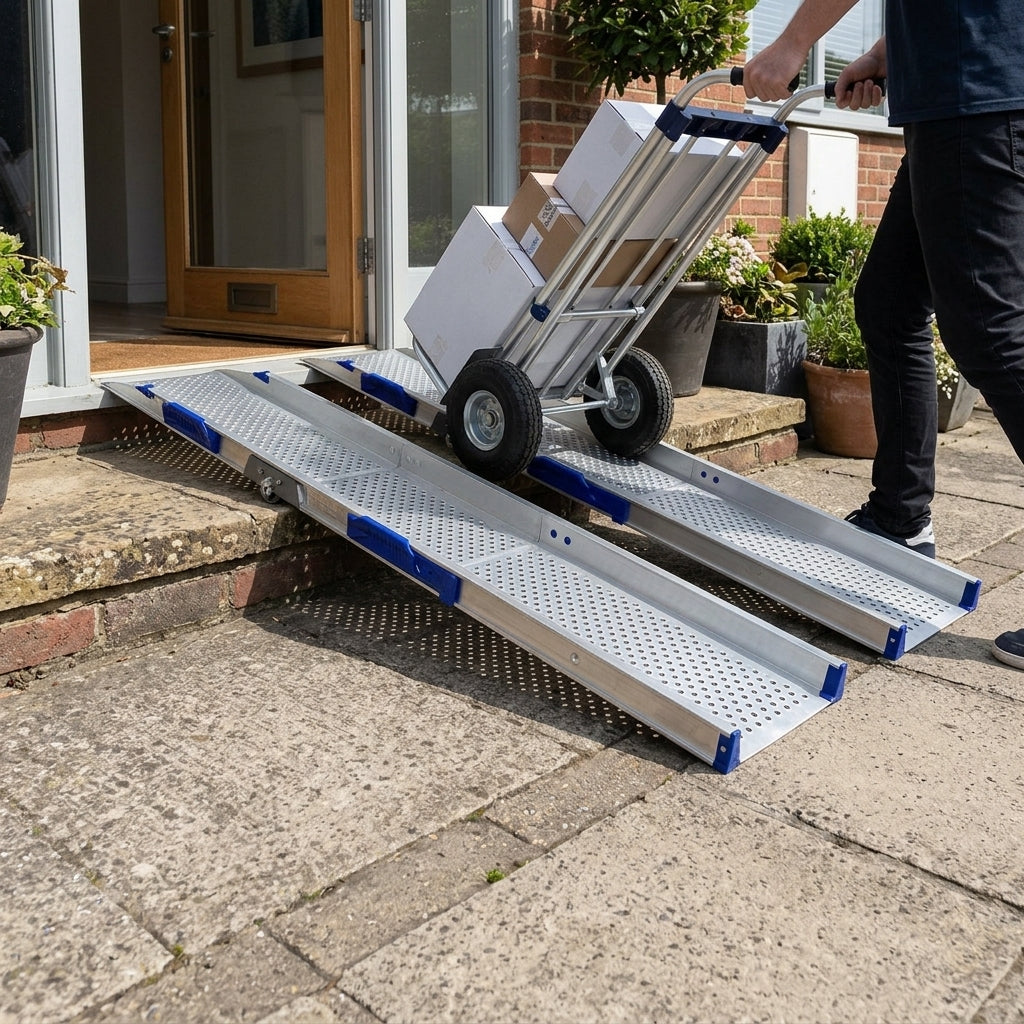

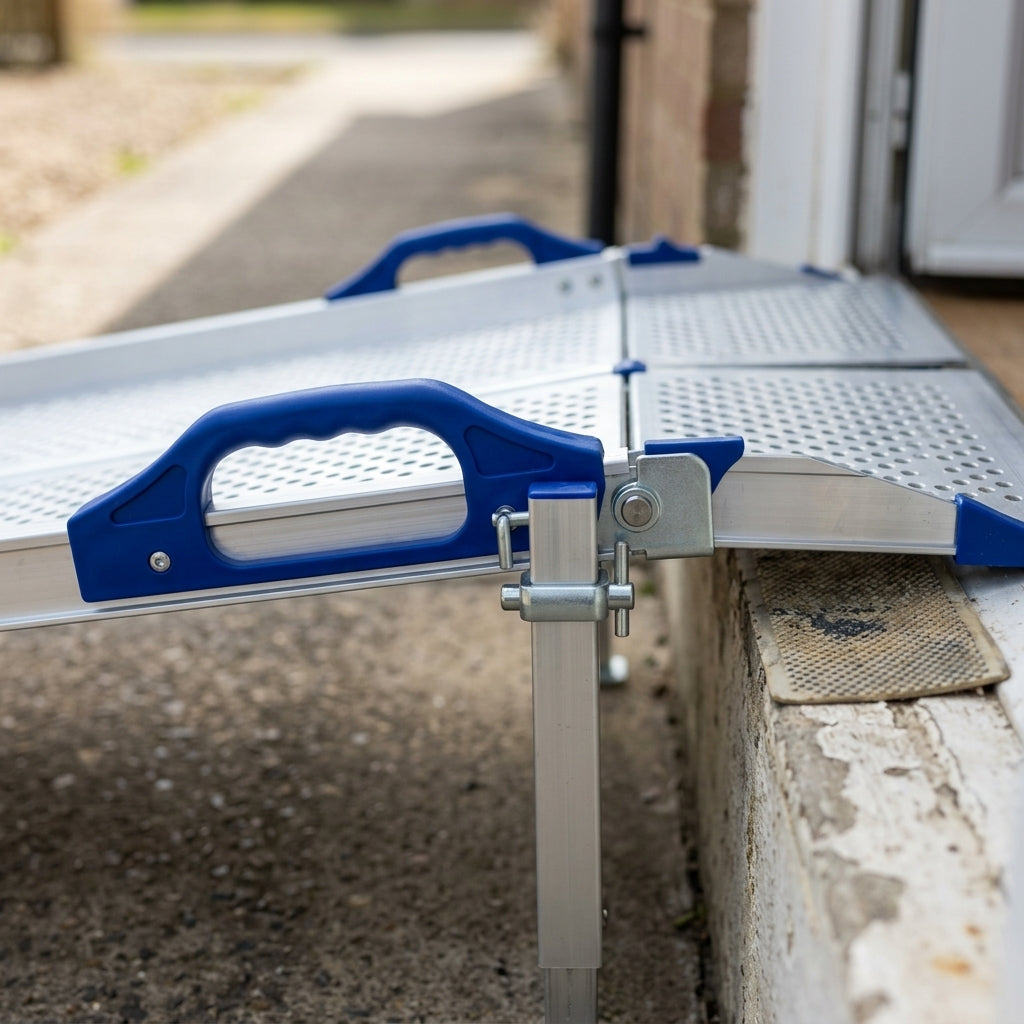

Extra-Wide Folding Telescopic Wheelchair Channel Ramps, Pair – 1020mm to 3000mm L x 270mm W, 250kg
Not sure which length you need?
Send us the step height and who will use it — we'll confirm the right ramp before you order.
Overview
A highly versatile pair of wheelchair channel ramps that combine folding and telescopic features in one design. They can even bridge thresholds that have different levels on each side. Each ramp extends from 1020mm to 3000mm long and folds to 1000mm; maximum load height 500mm. Each ramp weighs 11.4kg (22.8kg per pair). Price and capacity are for the pair.
Specifications
| Size | 1020mm–3000mm L x 270mm W (Folded 1000mm L) |
|---|---|
| Edge Height (mm) | 50 |
| Folded Length (mm) | 1000 |
| Length (ft) | 9.8 |
| Length (mm) | 3000 |
| Maximum Length (mm) | 3000 |
| Minimum Length | 1020 |
| Width (mm) | 270 |
| Capacity (kg) | 250 |
| Max Load Height (mm) | 500 |
| Weight per Ramp (kg) | 11.4 |
| Weight Per Pair (kg) | 22.8 |
| Three Year Warranty | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Manual Wheelchair | Yes |
| Not Mobility Scooter Friendly | Yes |
| Colour Options | Black |
Features
- Extra-wide 270mm channels for greater flexibility.
- Quick and easy to set up.
- Unique design gives excellent grip.
- Aerospace technology makes the ramps very strong yet lightweight.
- Silent telescopic mechanism lets you use the ramp at any length.
- Folds up for compact storage and clips shut for storage and transport.
- Ideal for kerbs, steps and thresholds.
- 250kg capacity.
- 50mm edge height.
- European made.
- Comprehensive three-year warranty.
Good to Know
- Suitable for manual wheelchairs only – not suitable for mobility scooters.
- These ramps are only suitable for use as mobility aids.
- Product images are for illustration only; the actual product may vary slightly due to ongoing product improvements.
Ramp length checker
Measure from the ground to the top of the step or threshold.
Need more width or reach?
All wheelchair ramps →
Aluminium Wheelchair Ramp Kit with Handrails – 2ft to 12ft L, 720mm or 933mm W, 350kg
from £600.00
Longer reach

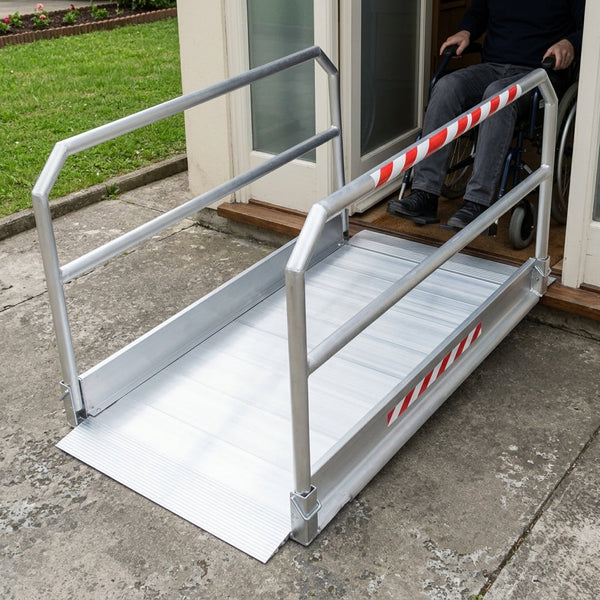

Pedestrian Ramp with Folding Handrails – 3790mm L x 1000mm Internal W, 400kg/m²
