Professional Aluminium Plant Loading Ramps (Pair) – 2000mm L x 300mm W, 3,500kg Capacity

A pair of professional aluminium loading ramps, each 2000mm long and 300mm wide with a 75mm profile thickness. With a combined capacity of 3,500kg, they are ideal for loading tracked machinery onto vans, trailers and car transporters. The price and capacity shown are for the pair.

• The foot is cut to suit the load height for a smooth run-on.
• Non-slip ramp surface.

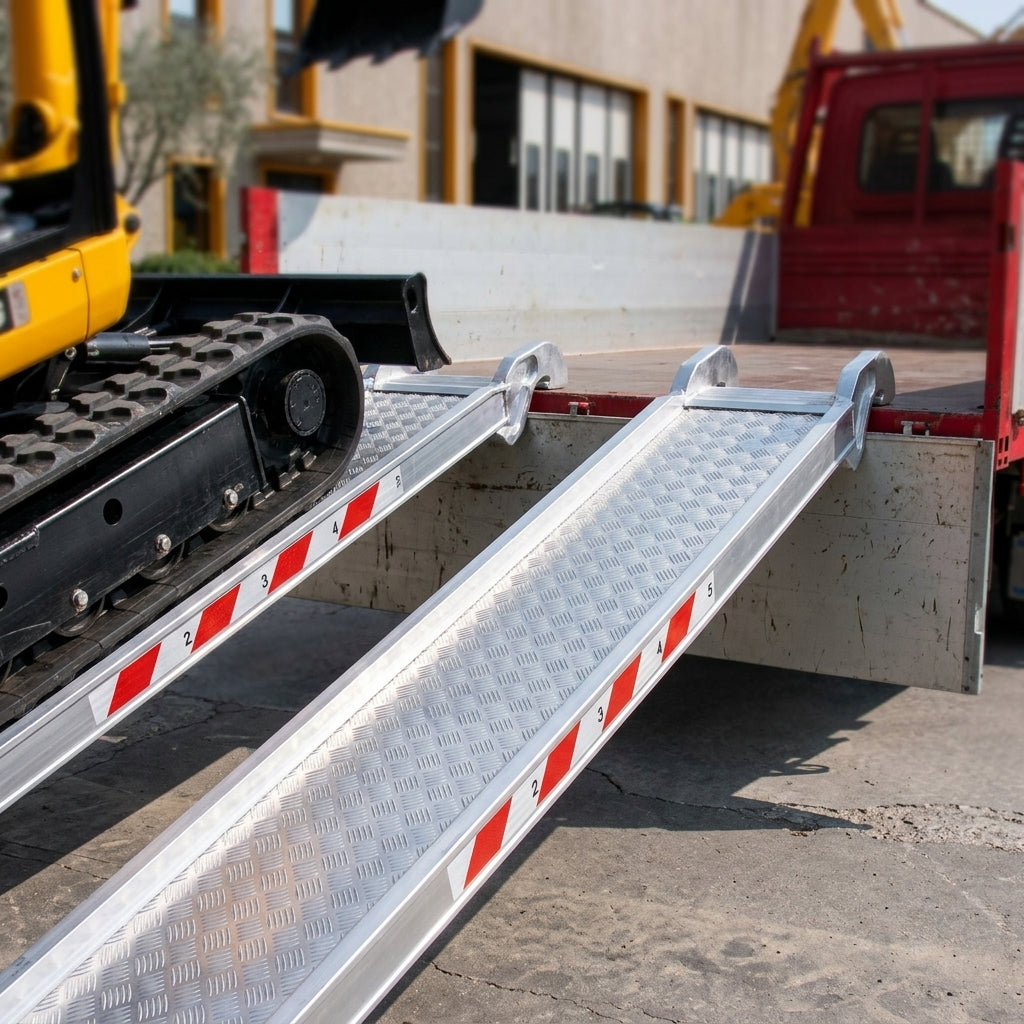

• Built for loading tracked plant machinery and vehicles, including diggers, tractors, excavators and ride-on mowers. Suitable for professional use and popular in the construction and landscaping industries.
• Supplied without side edges as standard; versions with edges are also available.
• Four connection options are available; the standard fitting is a rest-on connection with a pin, a popular choice for flatbed vehicles and tipper trucks; a hook connection is normally recommended for beaver tail trailers.
• The curved rest-on connection has a pre-drilled hole so the ramps can be secured to the vehicle, and the angled foot keeps the base on the ground. The ramps’ own weight and gradient also help hold them firmly in place.
• Each ramp weighs 14kg (28kg per pair).

• Load height: 450mm to 600mm.
• Track/wheel width: minimum 150mm, maximum 220mm.
• Designed for a maximum loading gradient of 30% – do not use them any steeper.
• Capacity by machine wheelbase: 3,500kg at 1000mm, 3,500kg at 1250mm, 3,500kg at 1500mm.
• The stated maximum capacities only apply when the vehicle’s weight is evenly distributed.

• Not suitable for machines with solid wheels, such as road surfacing machines; steel-tracked machinery needs a dedicated industrial ramp.
• The 30% gradient is generally too steep for low-clearance cars, forklifts and scissor lifts; a car ramp or container ramp is the better choice for those, or a custom solution can be made.
• Fully TÜV certified. Made in Europe. Easy to fit.
• Two-year warranty.
• Custom load heights, custom sizes and nylon handles are available, and quotes for bespoke ramps can be supplied on request.
• If you need a different connection type, such as a hook connection, this can be arranged after purchase.
• A single ramp can be quoted on request.
• Built to order.
• Photos are for illustration only; the actual product may vary slightly due to product improvements.
