Adjustable Aluminium Wheelchair Turning Platform – 935mm W x 1010mm L, 250–430mm H
Not sure it's the right one?
Tell us where and how it will be used — we'll confirm the right product before you order.
Overview
A lightweight, portable aluminium turning platform that works with most folding wheelchair ramps to give wheelchair access to homes and commercial properties. It lets users make a 90-degree left or right turn where a straight ramp will not fit, for example because of pavement or patio size, walls or fences. The height adjusts from 250mm to 430mm. Platform only; ramps are not included.
Specifications
| Size | 1010mm L x 935mm W – Adjustable 250mm to 430mm H |
|---|---|
| Edge Height (mm) | 80 |
| Length (mm) | 1010 |
| Width (mm) | 935 |
| Capacity (kg) | 300 |
| Max Load Height (mm) | 430 |
| Min. Load Height (mm) | 250 |
| Weight (kg) | 28.5 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Electric Wheelchair | Yes |
| High Visability | Yes |
| Manual Wheelchair | Yes |
| Mobility Scooter Friendly | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
How It Works

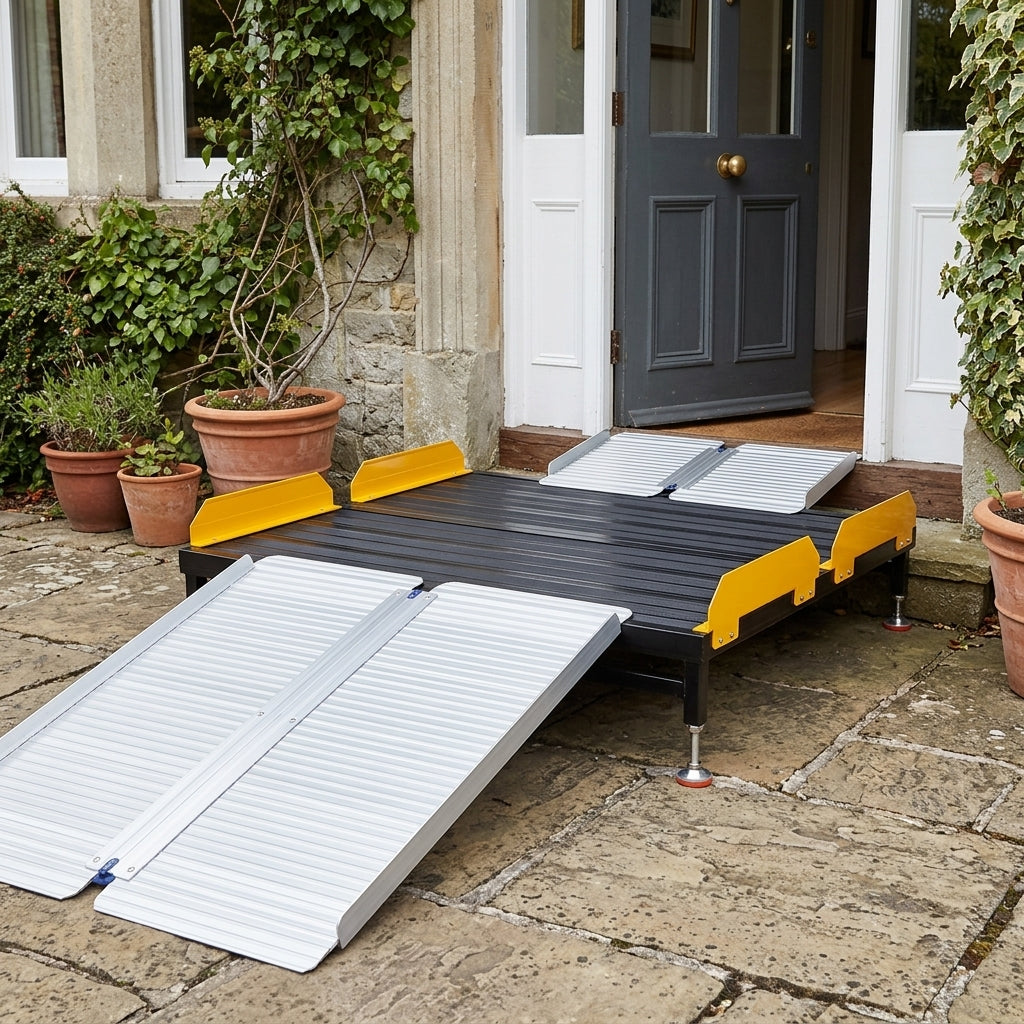

- Place it in front of a step so users can roll onto the platform and turn, or combine it with two ramps for an L-shaped layout: down one ramp from the door, turn on the platform, then down a second ramp to the ground.
- The edges can be fitted on either side, so it can also join two ramps in a straight line, handy if you do not want to carry or store one long ramp.
- It also gives a level, stable area at an entrance where users can wait and open doors without rolling backwards.
- Once set to height, rest the ramps on the platform and start using it. Use ramps no wider than 935mm.
Features

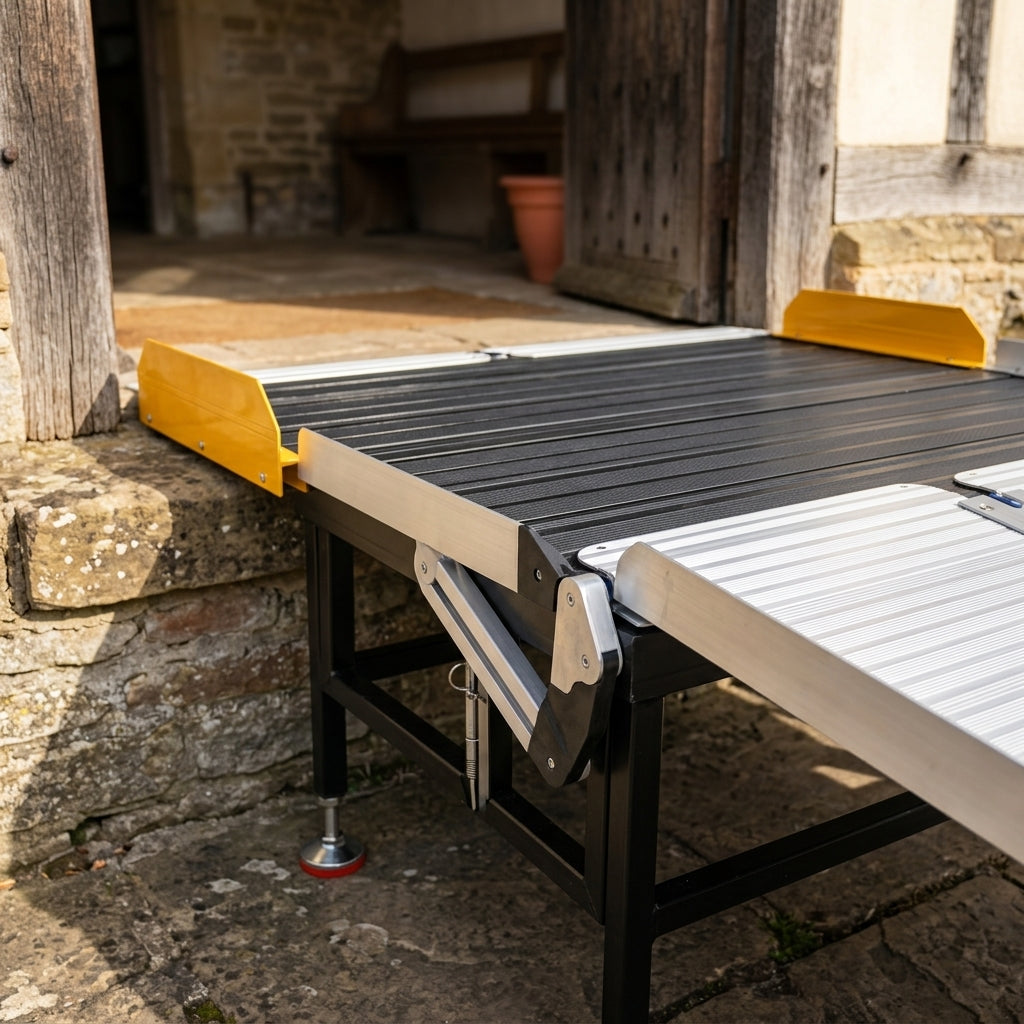

- Four independent legs, each adjustable, so you get the right height even on uneven ground.
- Rated to 300kg, suitable for manual and electric wheelchairs and mobility scooters.
- Black anti-slip surface for traction when turning, with high-visibility yellow safety edges (80mm high) to stop users coming off.
- Weighs 28.5kg and comes in two pieces (frame and top surface), with a built-in carry handle. Compact for storage.
- Easy to assemble and take apart: one person usually does it in under 20 minutes with a spanner (not supplied); all parts are provided.
- Supplied in two boxes: platform 105 x 45 x 15cm and legs 105 x 25 x 15cm.
Good to Know
- Portable: it has no fixing points for securing it to the ground.
- One-year warranty. A ramp accessory for use as a mobility aid only.
Need more width or reach?
All steps, ladders & platforms →
Qualifies for VAT relief
VAT relief added — VAT comes off in your basketVAT relief
This product is designed for disabled people, so it can be bought without VAT when it is for the personal or domestic use of someone who is chronically sick or disabled, or when an eligible charity buys it for a disabled person's use.
Who can claim
- A person with a physical or mental impairment that has a long-term effect on their ability to carry out everyday activities.
- A person with a condition doctors treat as a chronic illness (for example diabetes), or who is terminally ill.
- A family member, carer or friend buying it on their behalf.
- A charity buying it to make it available to disabled people.
Who can't claim
- Someone with a temporary injury, such as a broken bone.
- An older person who is frail but not disabled or chronically sick.
- A VAT-registered business, or anyone buying for general or shared use (unless it is an eligible charity).
How to claim
- Choose Claim VAT relief (here or in your basket).
- Enter the name of the person or charity, and the condition or the charity's registration number.
- Tick the declaration. The 20% VAT is then taken off every qualifying item in your basket before checkout.
Your declaration is kept with your order, as HMRC requires. Making a false declaration is an offence. If you're unsure whether you qualify, see HMRC Notice 701/7 or ask your doctor — we can't give medical advice.
