Loading Ramps
Aluminium loading ramps in pairs and singles for plant, machinery, tracked vehicles, pallet trucks and general loading jobs.
- 218ramp listings
- highest rated pair
- length range
Ramp Finder
3 inputs · instant matchWheeled or rubber-tracked plant: 15° angle. Guide only – always check the rated capacity.

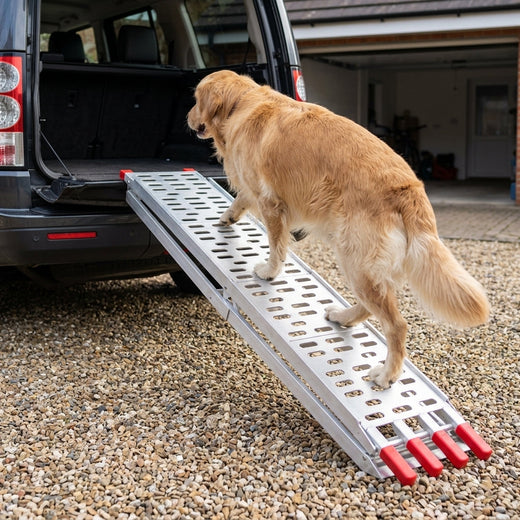

Foldable Aluminium Mesh Loading Ramp – 1000mm to 2800mm L x 850mm W, 400kg Capacity
from £1,641.60 incl. VAT
Choose options

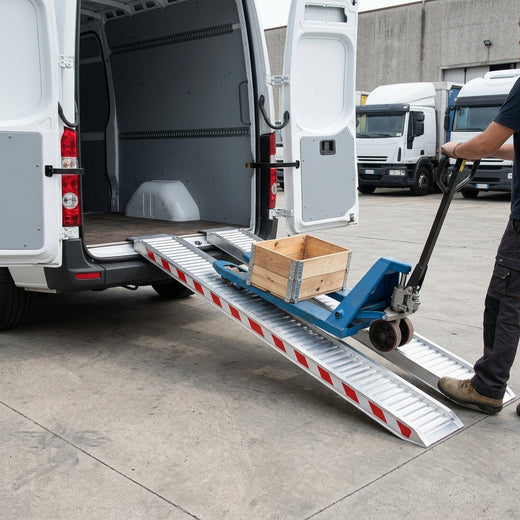

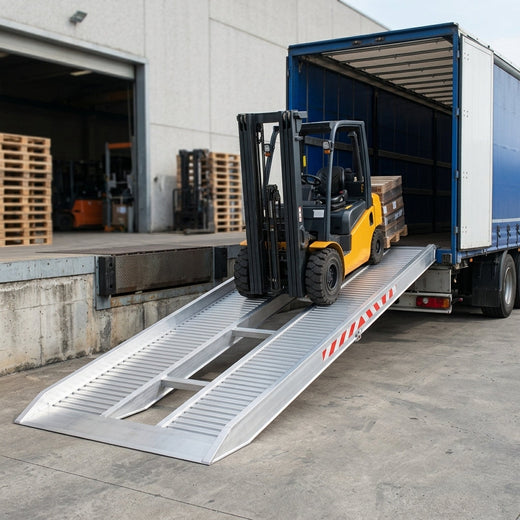

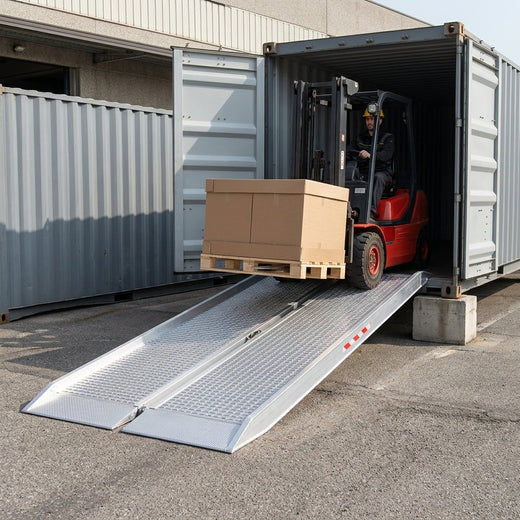

Aluminium Pallet Truck & Container Ramp 1800mm to 2400mm L – 1000mm W, 1000kg Capacity
from £1,788.00 incl. VAT
Choose options
No products match these filters.
Not sure which pair you need?
Send us the machine's operating weight, track or tyre type and your load height. We will reply with the pairs that fit.
How to choose a loading ramp
Capacity: pick a pair rated above your machine's full operating weight, including bucket, fuel and attachments. A margin of around 25% keeps loading safe on uneven ground.
Length: the longer the ramp, the shallower the angle. Low cars need a gentle angle; tracked plant can climb steeper. Use the table to match your load height.
Width & surface: choose a ramp wider than your track or tyre. Steel tracks need milled-surface or rubber-coated ramps so the decking is not damaged.
Minimum ramp length by load height
| Load height | Plant & tracked 15° | Cars & low clearance 10° |
|---|---|---|
| 300 mm | 1,200 mm | 1,800 mm |
| 450 mm | 1,700 mm | 2,600 mm |
| 600 mm | 2,300 mm | 3,500 mm |
| 750 mm | 2,800 mm | 4,300 mm |
| 900 mm | 3,400 mm | 5,200 mm |
| 1,200 mm | 4,500 mm | Ask us |
Loading ramp questions
Is the capacity for one ramp or the pair?
Pair listings show the capacity of the two ramps used together. Where a listing is rated per ramp, the title says “per Ramp”. If a listing isn't clear for your machine, ask us before you order.
Which ramps suit an excavator on steel tracks?
Choose ramps listed “for Steel Tracks” — milled-surface aluminium or rubber-coated. Standard aluminium ramps are made for tyres and rubber tracks; steel track plates can damage their decking.
How long should my ramps be?
It depends on your load height and the angle your machine can climb. Use the Ramp Finder or the table above: tracked plant usually manages around 15°, cars and low-clearance machines need around 10°. Always check the maximum angle in your machine maker's guidance.
Can you help with a machine that is not listed?
Yes. Send us the machine's operating weight, track or tyre width and your load height, and we will reply with the pairs that fit.
